Product Specifications

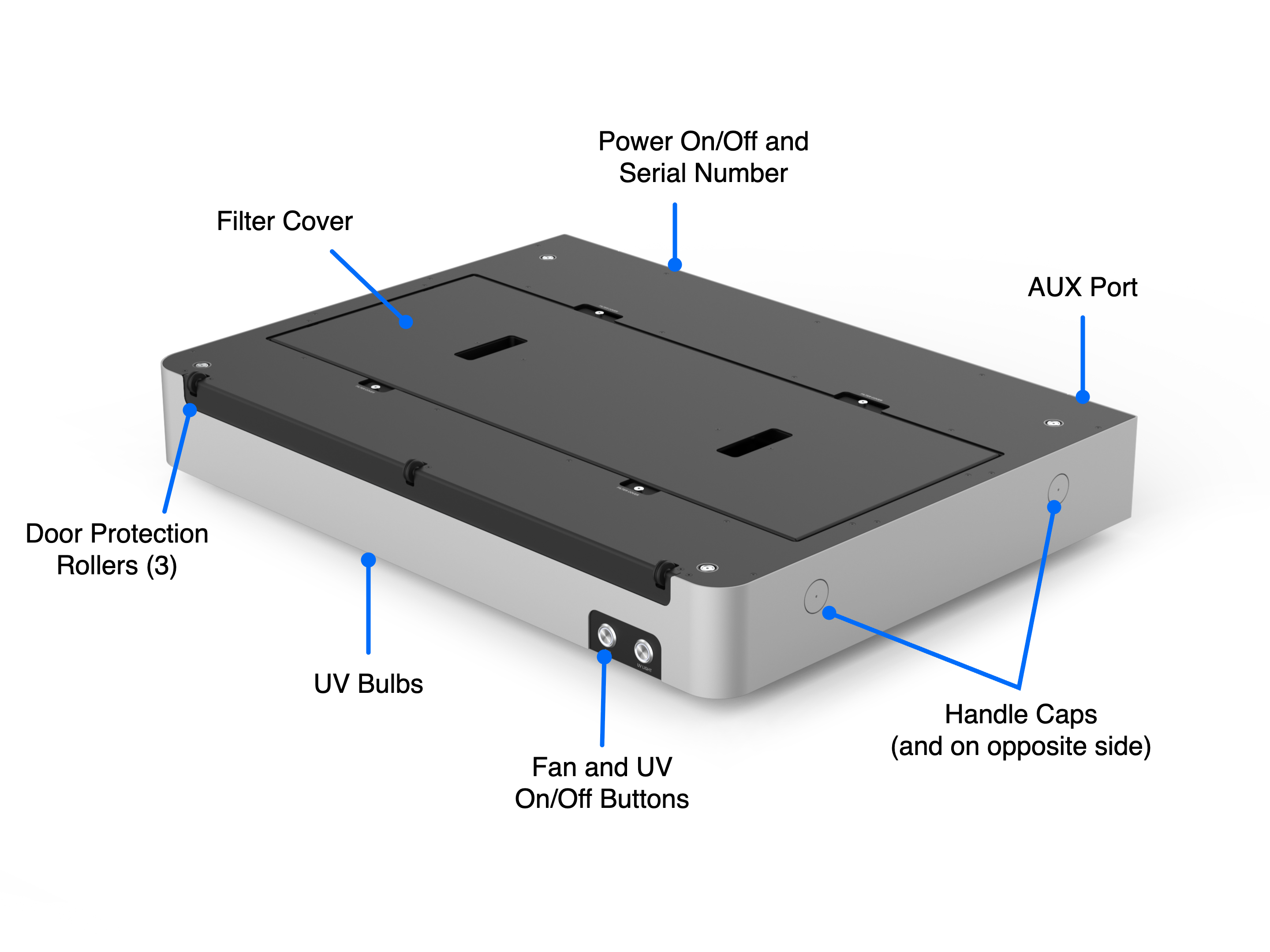

Included parts¶
Physical specifications¶
| Specification | Details |
|---|---|
| Box dimensions | 102 cm L x 79 cm W x 25 cm H |
| Module dimensions | 87 cm L x 64 cm W x 14 cm H |
| Module weight | ~20 kg (42 lbs) |
| Operating space | 20 cm / 8” (minimum) of side and top clearance |
Input and output connections¶
The HEPA/UV Module has the following power input requirements, which are met by the included power supply.
Warning
Observe the following when handling the module power cable:
- Always plug the power cable into a grounded outlet.
- Make sure that the power cable is not obstructed, in case it needs to be disconnected.
- Do not replace the power supply cable unless at the direction of Opentrons Support. This ensures that the power cable has adequate ratings for the equipment.
Power specifications¶
| Specification | Details |
|---|---|
| Input |
|
| Output | 24 VDC, 8.4 A, 201 W max |
| Mains supply voltage fluctuation | 100–240 VAC ±10% |
| Fuse type | T3.15 A, 250 V, 5×20 mm |
Power consumption¶
The power consumption specifications are measured with the UV lights and fan on.
- Typical power consumption: 75.5 W
- Peak power consumption: 160 W
Door Protection Rollers¶

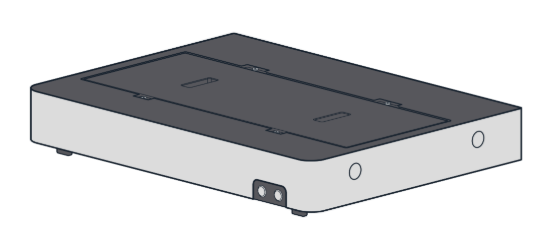

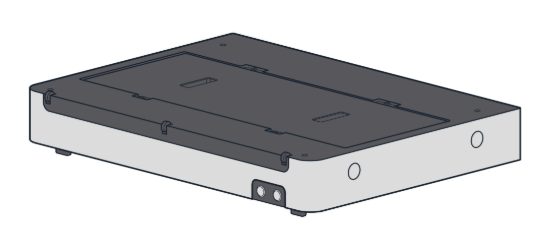

With early model HEPA/UV Modules, fully opening the robot's front door could cause it to scrape against the top of the module. HEPA/UV Modules manufactured in or after July 2025 include three rollers mounted along its top-front edge. These rollers help prevent the HEPA/UV Module from damaging the front door when you open it.
