First Run

Perform basic setup on the touchscreen before connecting any other hardware to your Flex. The robot will guide you through connecting to your lab network, updating to the latest software, and personalizing Flex by giving it a name.

Power on

When you power on Flex, the Opentrons logo will appear on the touchscreen. After a few moments, it will show the "Welcome to your Opentrons Flex" screen.

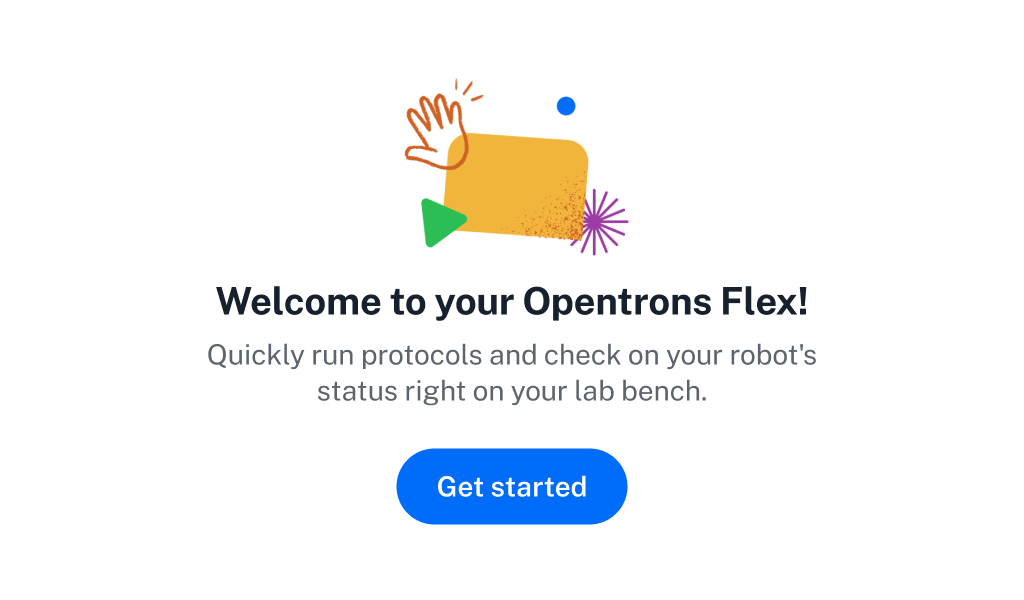

The Opentrons Flex welcome screen.

The Opentrons Flex welcome screen. You should only see this screen when you start your Flex for the first time.

Connect to a network or computer

Follow the prompts on the touchscreen to get your robot connected so it can check for software updates and receive protocol files. There are three connection methods: Wi-Fi, Ethernet, and USB.

Note

Opentrons strongly recommends using an Ethernet connection for the initial setup.

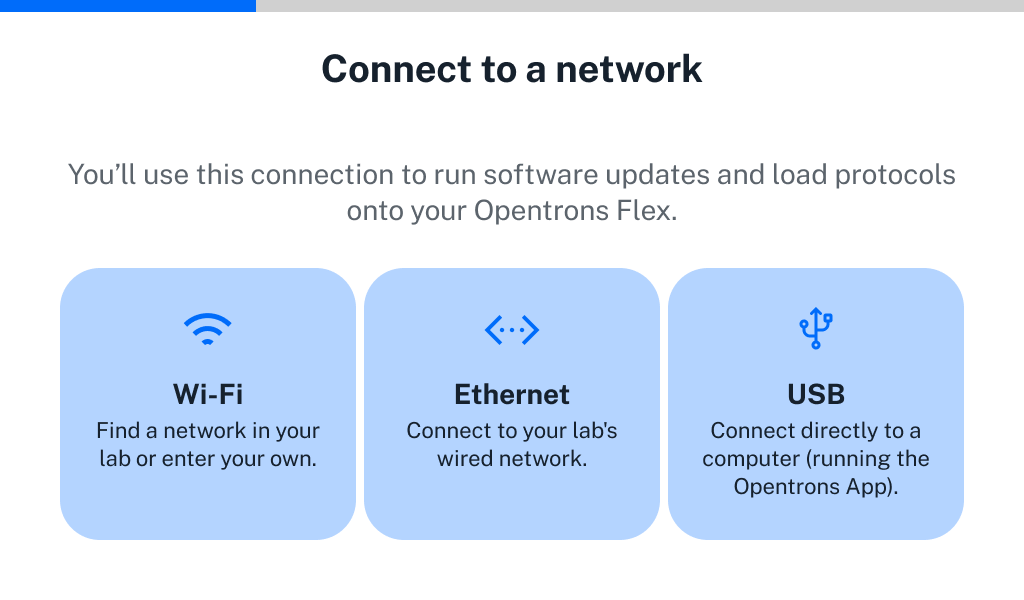

Network connection options.

Network connection options. You need to have internet connectivity to set up Flex.

Connect your Flex to a network switch, hub, or router with an Ethernet cable before connecting it to a Wi-Fi network. Making this initial connection via Ethernet cable ensures the robot has a stable internet connection to download any required software or firmware updates. Weak wireless signals can interrupt these downloads, causing the robot to get stuck in an endless restart cycle (a "boot loop"). After the Flex has updated and restarted, you can then switch to a wireless network if desired.

Also, after first starting with an ethernet connection, you can then connect the robot directly to the Ethernet port on your computer, starting in robot system version 7.1.0.

Wi-Fi

Use the touchscreen to connect to Wi-Fi networks that are secured with WPA2 Personal authentication (most networks that only require a password to join fall under this category).

Avoiding first-run setup errors

  • Use Ethernet first: As noted above, using Ethernet for the first connection prevents potential update errors caused by weak Wi-Fi signals. After updating, you can then connect the robot to a wireless network.
  • No captive portals: Flex does not support captive portals (networks that don't have a password but load a webpage to authenticate users after connecting). Captive portals are commonly found in hotels, airports, or other public guest network locations.

You can also connect to an open Wi-Fi network, but this is not recommended.

Warning

Connecting to an open Wi-Fi network will allow anyone in range of the network signal to control your Opentrons Flex robot without authentication.

If you need to connect to a Wi-Fi network that uses enterprise authentication (including "eduroam" and similar academic networks that require a username and password), first connect to the Opentrons App by Ethernet or USB to complete initial setup. Then connect to the enterprise Wi-Fi network in the networking settings for your Flex. To access the networking settings:

  1. Click Devices in the left sidebar of the Opentrons App.

  2. Click the three-dot menu (⋮) for your Flex and choose Robot Settings.

  3. Click the Networking tab.

Select your network from the dropdown menu or choose "Join other network..." and enter its SSID. Choose the enterprise authentication method that your network uses. The supported methods are:

  • EAP-TTLS with TLS

  • EAP-TTLS with MS-CHAP v2

  • EAP-TTLS with MD5

  • EAP-PEAP with MS-CHAP v2

  • EAP-TLS

Each of these methods requires a username and password, and depending on your exact network configuration may require certificate files or other options. Consult your facility's IT documentation or contact your IT manager for details of your network setup.

USB

Connect the provided USB A-to-B cable to the robot's USB-B port and an open port on your computer. Use a USB B-to-C cable or a USB A-to-C adapter if your computer does not have a USB-A port.

To proceed with setup, the connected computer must have the Opentrons App installed and running. For details on installing the Opentrons App, see the App Installation section.

Install software updates

Now that you've connected to a network or computer, the robot can check for software and firmware updates and download them if needed. If there is an update, it may take a few minutes to install. Once the update is complete, the robot will restart.

Attach Emergency Stop Pendant

Connect the included Emergency Stop Pendant (E-stop) to an auxiliary port (AUX-1 or AUX-2) on the back of the robot.

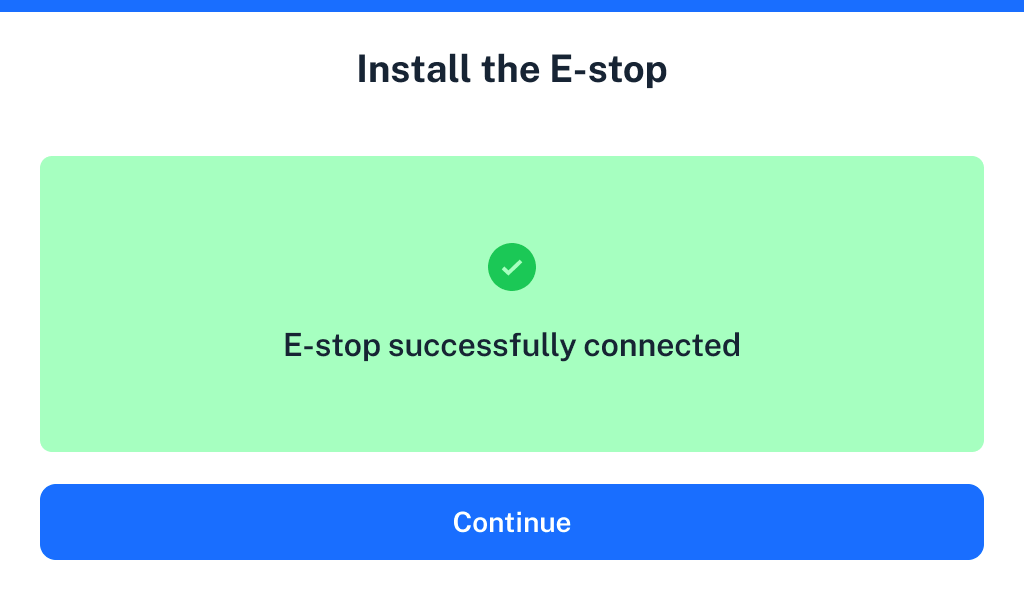

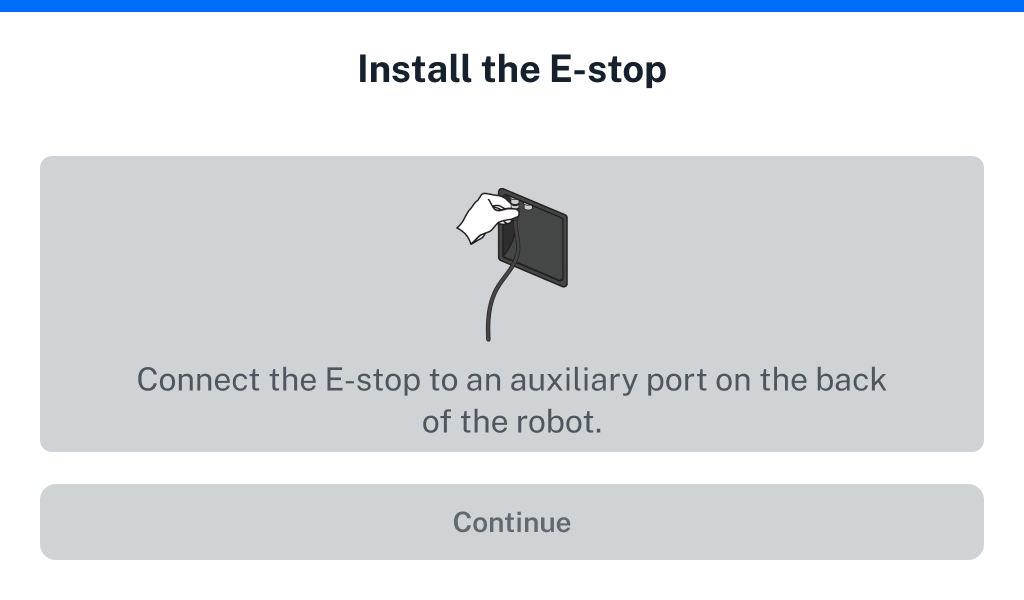

Screen showing how to connect the E-stop. Screen showing succesful E-stop connection.

Before and after connecting the Emergency Stop Pendant.

Attaching and enabling the E-stop is mandatory for attaching instruments and running protocols on Flex. For more information on using the E-stop during robot operation, see the When to Use the E-stop section.

Give your robot a name

Naming your robot lets you easily identify it in your lab environment. If you have multiple Opentrons robots on your network, make sure to give them unique names. Once you've confirmed your robot's name, you'll be taken to your Opentrons Flex Dashboard. Likely the next step you'll want to take is attaching instruments.
