Protocol starting deck

Click Edit protocol to add and edit hardware, labware, and liquids on the protocol starting deck.

The protocol starting deck view shows how your Flex or OT-2 deck will look at the beginning of a protocol. This is the first step in your protocol timeline, shown on the left. It's also the same view of the deck as in the protocol overview, but editable.

Deck hardware

To start, the deck includes your chosen modules and fixtures. Click Deck hardware in the upper left to add, move, or delete modules or fixtures. Protocol Designer only shows compatible options for each slot.

Add, move, or delete deck hardware, like modules and fixtures.

Liquids

Next, click Liquids in the upper left. First, define a liquid to use in your protocol with a name, description, and color. You can also define the liquid as an Opentrons-verified liquid class to apply optimized pipetting settings during transfer and mix steps. You'll be able to add liquids to labware already on the robot deck.

Labware

Click to return to the protocol starting deck, the first step in your protocol timeline. Here, you can edit labware on or off the robot deck.

To start, Protocol Designer places your chosen tip racks on the deck. You can drag and drop tip racks to new deck slots, or click and choose Edit labware to replace or delete the tip rack. Click any open deck slot to add additional tip racks. You can include lids on additional Flex tip racks.

Hover over any deck slot to view slot details. Then, click individual slots to add, remove, or change labware.

For the example below, add labware by clicking empty deck slot D2.

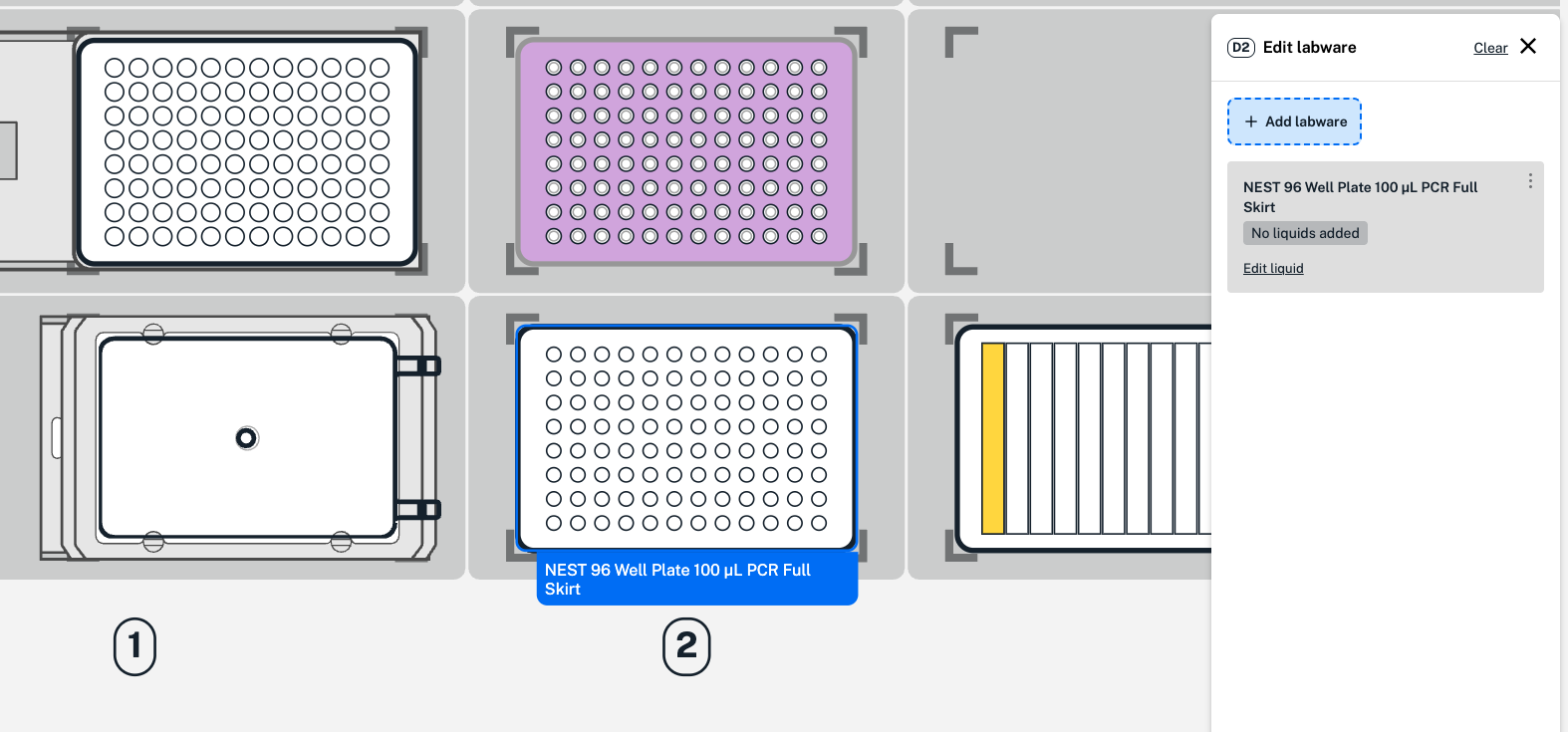

Add a well plate to the deck.

In the menu, search for or select a labware type and view available options from the Labware Library:

• Additional tip racks
• Tube racks
• Well plates, reservoirs, and their compatible lid options
• Aluminum blocks to hold tubes or well plates on a Temperature module
• Adapters like the Flex Deck Riser
• Labware lids

You can stack up to five lids to use later in your protocol in an open deck slot or on a Flex Deck Riser. Tip rack lids can't be stacked or placed on the deck or a Deck Riser.

Click at the bottom of the labware list to upload a JSON file and use custom labware in your protocol.

Click Edit liquid in the labware menu on the right to add liquids you've already defined in your protocol. In the labware graphic, click and drag to select wells across rows and columns. From the dropdown menu, select your liquid and enter the starting volume for each well in microliters (µL). Click Save for each liquid added to your labware before clicking Done.

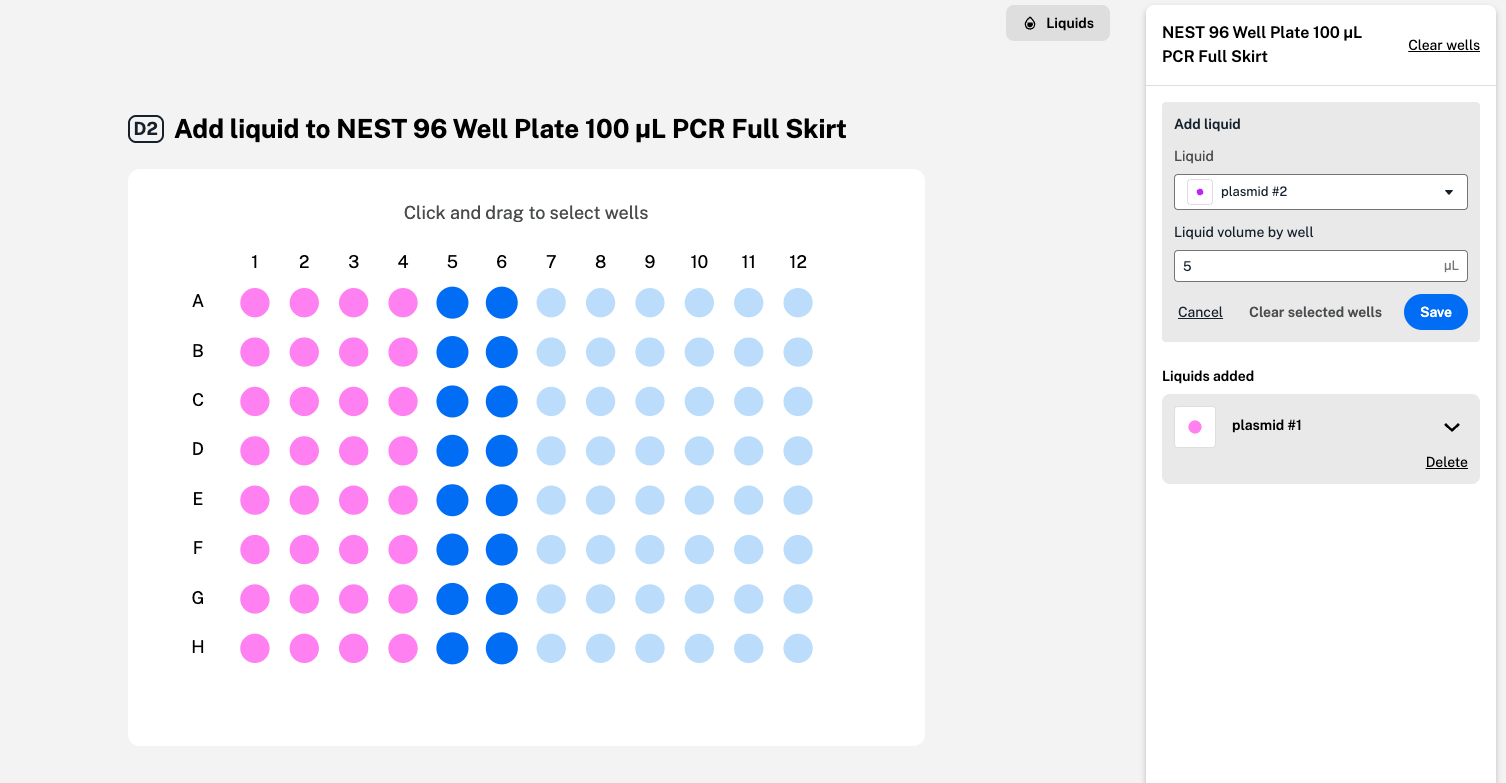

Add liquid to your chosen wells. Wells shown in blue are selected to add a second liquid (plasmid #2).

To add labware to a module, click any open module and choose Edit labware.

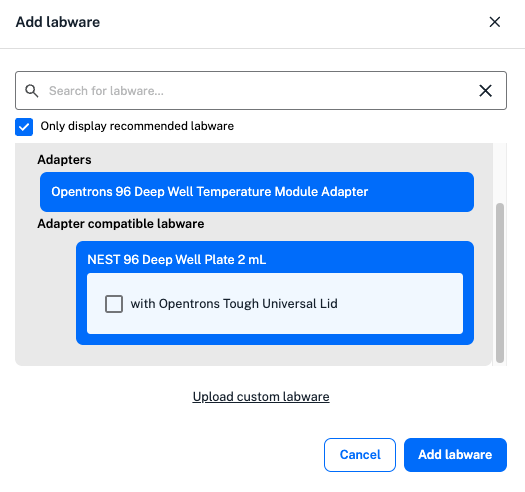

Add compatible labware to the Temperature Module.

Protocol Designer only shows recommended labware in the list of available options. You can choose to view all labware, including labware that may be incompatible with the module. Add compatible adapters for modules on the deck from the "adapter" labware category.

Use the toggle switch at the upper right of the protocol starting deck if you need to add any off-deck labware. You can place compatible labware on or off-deck and move to a module later in your protocol. You'll need to use a move step to add any labware to the Absorbance Plate Reader Module.

After adding labware, drag and drop to move to another slot. Click the deck slot for additional editing options:

• Duplicate labware to add the same selection to another open deck slot.
• Rename any labware (with the exception of tip racks) to make them easier to identify throughout your protocol.
• Clear all hardware and labware from any slot.

Edit staging areas by clicking any deck slot in row 3 or 4. To edit a Thermocycler Module, click deck slot B1 on the Flex or 7 on the OT-2. A trash bin or waste chute is always required on the deck. On the OT-2, the trash bin is always placed in slot 12.
